There's nothing quite like the freedom of hitting the open road in your motorhome or setting up your campervan in the stunning Aussie wilderness. From the red dirt of the Kimberley to the lush forests of Tassie, having a reliable power setup is the key to making a trip comfortable, convenient, and safe.
However, dealing with 12V power can be a minefield. Get it right, and your camp fridge is icy cold, your lights are on, and your devices are charged. Get it wrong, and you could be left with a flat battery, warm beer, or a serious safety hazard.
One of the most overlooked but crucial parts of any setup is the humble extension cable. And no, we're not talking about that flimsy orange one from the back of the garage. Using the wrong cable for your motorhome or camping gear is one of the quickest ways to ruin a trip. This guide is here to make sure that doesn't happen. We'll break down everything you need to know to keep your setup safe, efficient, and humming along perfectly.
Why Your Garage Extension Cord Won't Cut It
It’s tempting to grab any old extension lead, but a standard 240V household cord is not designed for the demands of a 12V touring setup. Here’s why you need to be selective:
- Voltage Drop: This is your number one enemy. The further electricity has to travel down a wire, the more voltage it loses along the way. In a 12V system, this loss is far more critical than at home. A small drop can be the difference between your fridge running perfectly and it cutting out because it thinks the battery is flat.
- Wire Thickness (Gauge): Thicker wires have less resistance, which means less voltage drop. Most household cords are too thin to handle the amperage (current) drawn by camping accessories like fridges and inverters without significant power loss or dangerous heat buildup.
- Durability: Aussie campsites are tough environments. You need a cable with a rugged outer sheath that can handle being laid across dirt, rocks, and the occasional bit of weather, not one designed for the living room floor.
Choosing the Right Gear: Your Power Extension Checklist
Getting your cabling right from the start saves a world of headaches. Here’s what to look for when building your kit.
1. Cable Thickness is King (B&S Gauge)
In Australia, we measure heavy-duty cable thickness using the Brown & Sharpe (B&S) gauge system. It’s a bit counter-intuitive: the smaller the B&S number, the thicker the wire.
For connecting a battery box to a fridge in the back of your 4WD or motorhome, an 8B&S Extension Lead is the industry standard for a reason. It ensures maximum power delivery and is a smart investment to protect your gear.
2. Connectors: The Unsung Heroes
The best cable in the world is useless if the plug on the end is dodgy. Your connectors need to be secure, weatherproof, and rated for the job.
- Anderson-style Connectors (The Gold Standard): If you see one piece of gear you should absolutely invest in, it's this. These genderless, heavy-duty plugs provide a secure, low-resistance connection that clicks firmly into place. They can handle high currents (typically 50A) and are the safest way to connect batteries, solar panels, and fridges. You'll notice they come in different colours – grey is the most common for 12V accessories.
- Cigarette Sockets (For Light-Duty Only): Your vehicle's cig socket is fine for charging a phone or running a dashcam. However, they are notoriously unreliable for anything drawing serious power. The connections can vibrate loose, and they are typically only fused for 8-10A. If you need to extend a cigarette lighter connection, use a dedicated, high-quality Cig Socket Extension Cable, but reserve it for low-power jobs only.
- Ring Terminals: These are ideal for semi-permanent connections directly to a battery's terminals, like inside a battery box. They ensure a solid, secure connection that won’t rattle loose on corrugated roads.

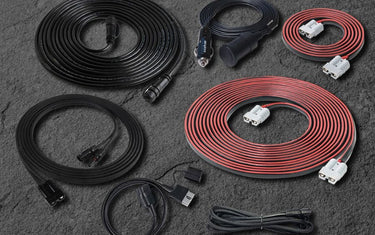

A robust 8B&S cable with Anderson-style connectors is the smart choice for powering critical gear.
Staying Safe: The Dos and Don'ts of Campsite Power
Safety should always be your number one priority. A little bit of care goes a long way.
The "Dos"
- Do Inspect Your Cables: Before every trip, give your leads a quick once-over. Check for any cuts, abrasions, or exposed wiring.
- Do Keep Connections Dry: Try to keep plugs and connections off the wet ground and out of the rain. A splash-proof cover for your connectors is a great idea.
- Do Secure Your Cables: Run cables where they won't be a trip hazard. If you have to run a lead across a walkway, use a cable cover or tape it down securely.
- Do Understand Your Load: Know how much power your appliances draw so you don’t overload a circuit or a cable.
The "Don'ts"
- Don't Daisy-Chain: Never plug an extension lead into another extension lead. This dramatically increases voltage drop and creates a potential fire hazard. Use a single lead that is the correct length for the job.
- Don't Run Cables Through Puddles: Water and electricity should never mix. Simple as that.
- Don't Leave Cables Coiled: When a heavy-duty cable is under a significant load (like running a fridge), don't leave it tightly coiled. It can generate heat that has nowhere to escape. Lay it out as straight as possible.
- Don't Use Damaged Gear: If a cable is frayed or a plug is cracked, don't try and patch it with electrical tape. It's not worth the risk. Replace it.
Common Mistakes (And How to Avoid Them)
Here are some common blunders that can be easily avoided.
-
The Skinny Cable Mistake: Running a 40L compressor fridge off a thin, 10-metre-long cigarette lighter extension cord. The fridge will constantly cycle on and off or throw an error code because of the massive voltage drop, and you'll be scratching your head wondering why your battery is full but the fridge won't run.
The Fix: Use a thick KickAss 8B&S Extension Lead with Anderson-style Connectors. It’s built for this exact job.
-
The Dodgy Connection Mistake: Relying on a wobbly cigarette plug that keeps falling out to power your camp fridge overnight. You wake up in the morning to a warm fridge and soggy food.
The Fix: Convert your fridge and battery box to use secure Anderson-style connectors. It’s a simple DIY job that provides total peace of mind.
Setting up your 12V system correctly is a foundational step for any great motorhome or camping adventure. By investing in high-quality, correctly-rated extension cables and connectors, you’re not just buying convenience; you’re buying safety and reliability. So before you head off on your next trip, take a moment to analyse your power leads. It’s the little details that make for a truly KickAss experience.
Browse our complete range of KickAss extension leads, and if you’re not sure what’s right for you, give us a call on (07) 3123 4715 or pop into one of our retail stores. Our team of 12V experts are always happy to chat.
