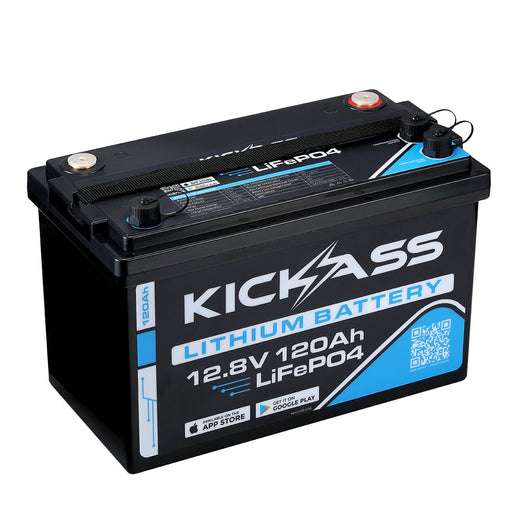

KickAss Smart 12V 120Ah Lithium Deep Cycle Battery LiFePO4

KickAss Smart 12V 120Ah Lithium Deep Cycle Battery LiFePO4

Support Page User Manual

120Ah 12V Lithium Deep Cycle Battery

KickAss 120Ah 12V Lithium Deep Cycle Battery:

KickAss has dedicated over 10 years to the development and design of the 120Ah 12V Lithium Deep Cycle Battery. This battery offers twice the usable capacity compared to a traditional 120Ah AGM battery, making it equivalent to a 240Ah AGM battery in terms of capacity.

Safe Lithium Iron Phosphate Chemistry (LiFePO4)

Utilizing LiFePO4, one of the safest and most stable lithium chemistry types, ensures that the KickAss 120Ah 12V Lithium Deep Cycle Battery is safe for even the most rugged terrains, providing at least 4000 cycles at 80% depth of discharge.

Lightweight Design: Only 12.15KG

The new KickAss 120Ah 12V Lithium Deep Cycle Battery is significantly lighter, weighing only 12.15kg, which simplifies installation and transport within your setup.

Durable ABS Casing

Featuring a high-quality ABS container, the battery offers excellent resistance to impacts and chemical erosion, ensuring a long lifespan and reliability.

Audible Low Battery Voltage Alarm

Avoid the inconvenience of a flat battery! The built-in audible alarm alerts you when the 120Ah 12V Lithium Deep Cycle Battery reaches low voltage levels and can be managed via the app.

Exclusively Designed by KickAss

Years of development have culminated in the release of one of the most advanced remote display units on the market, designed to complement our 120Ah 12V Lithium Deep Cycle Battery.

Monitor Your Battery's Status Via the Remote Screen (Optional Extra)

Access comprehensive diagnostics and status information with a simple button press. Keep track of battery temperature, voltage, system current, draw, time to empty, and charge status effortlessly.

The KickAss Smart 12V 120Ah Lithium Deep Cycle Battery provides a rated capacity of 120Ah and an energy output of 1536Wh, with a nominal voltage of 12.8V. It supports a maximum continuous discharge current of 120A and a pulse discharge current of 240A for 30 seconds.
This means you can rely on substantial energy storage and high current delivery for your off-grid power needs, whether you’re running appliances, tools, or adventure gear. Its high discharge rates ensure it can handle demanding loads without compromising performance.

Yes, the KickAss Smart 12V 120Ah Lithium Battery supports both parallel and series connections, with up to 4 batteries able to be linked. Each battery must be fully charged before connecting to ensure optimal performance and safety.
This flexibility allows you to scale your power system easily, increasing voltage or capacity depending on your setup. The built-in Battery Management System (BMS) and Bluetooth monitoring make managing multiple batteries simple and reliable.

The battery ships at approximately 60% state of charge (SOC), and you should complete a full charge before first use, ensuring your charger indicates the battery is fully charged. If the battery has been stored for a while, recharge fully before use.
Starting with a full charge maximises battery life and accuracy of the SOC readings. Use a charger designed for lithium batteries and connect loads with appropriately sized fuses for safe and efficient operation.

The KickAss Smart 12V 120Ah Lithium Battery features Bluetooth connectivity and supports remote monitoring via the KA Lithium mobile app and an optional Remote Display Unit. This allows real-time tracking of voltage, current, temperature, and state of charge.
This smart monitoring capability lets you keep tabs on your battery’s performance from your phone or a dedicated display, giving peace of mind and helping you optimise your power usage on the go or at your off-grid site.

The battery includes a Battery Management System (BMS) that protects against overcharge, over-discharge, short circuits, and overheating. It operates safely within a charge temperature range of 0 to +55°C and discharge temperature range of -20 to +60°C.
These protections ensure your battery operates reliably and safely in a variety of environments. The BMS also provides fault codes and alerts to help you quickly address any issues, making this battery a safe choice for off-grid and adventure use.

The battery measures 340mm long, 185mm wide, and 234mm high, and weighs 14.05kg.
Its compact size and manageable weight make it easy to install in a range of setups, from camper trailers to solar power systems. The included mounting hardware and optional trays further simplify installation and secure placement.

The battery’s maximum continuous charge current is 120A, with a maximum charge voltage of 14.6V. Charging should be done within the temperature range of 0 to +55°C using a charger designed specifically for lithium batteries.
Following these charging parameters helps maintain battery health and longevity. Avoid overcharging or using incompatible chargers to benefit from the battery’s rated 4000 cycle life at 80% depth of discharge.

The battery can safely discharge in temperatures from -20°C up to +60°C and should be charged between 0°C and +55°C. It is designed to operate reliably within these temperature ranges.
This wide operating temperature range makes it ideal for Australian outdoor conditions, ensuring consistent performance whether you’re camping in winter or adventuring in summer heat. Proper ventilation during installation further supports safe operation.
