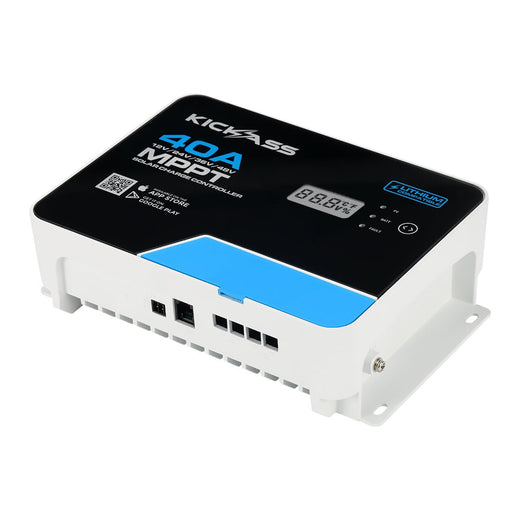

KickAss 40A 12V/24V/36V/48V MPPT Solar Charge Controller
Harvest more energy! This ultra versatile 40A MPPT charger will charge 12V, 24V, 36V & 48V battery systems. Monitor your system remotely via the Bluetooth App or an optional remote display screen.
Pickup available at Acacia Ridge Store
Usually ready in 1 hour
3 Years Warranty
This product is covered by a 3 Year Limited Warranty.
Description
KickAss 40A 12V/24V/36V/48V MPPT Solar Charge Controllers Features Overview
The KickAss 40A 12/24V MPPT Solar Controller uses the latest dual-peak and multi-peak tracking technology available today.
Highly Efficient MPPT
With a tracking efficiency of at least 99.5% and a peak conversion efficiency of 98%, you can be confident that your dual battery system is receiving the optimal charge.
The KickAss 12/24V MPPT Solar Controller series accurately identifies and tracks multiple power points, and includes built-in self-diagnostic technology to help prevent damage from installation and system failures.
Battery Temperature Sensor
Equipped with a temperature sensing probe, the KickAss 12/24V MPPT Solar Controller can limit the current output to your battery, preventing overheating and overcharging if a fault occurs with the connected battery.
LCD Display
The easy-to-read LCD display shows all crucial charging information dynamically (note that the LCD is not backlit).
Pair with
- KickAss Remote Control LCD Display For MPPT Controllers
- KickAss Bluetooth MPPT Module
These devices allow for convenient viewing of your controller in tight spaces and can connect to the KA Solar App on your smartphone for added convenience.
**Please Note: this unit is not a full battery management system, it is simply an MPPT with a load output**
Key features
- 99.5% tracking efficiency
- 98% peak conversion efficiency
- Built-in self-diagnostic technology
- LCD easy read display
- LED indicators for charging, battery, load, and faults
- RJ12 communication interface
- Temperature sensing probe
- Lithium compatible
Protective features
- Input power limit protection
- Battery reverse polarity protection
- Solar input high voltage protection
- Load overpower protection
- Load short circuit protection
- Reverse charge protection
- Over temperature protection for internal heat protection of the MPPT unit
- Over temperature protection for your battery (temperature sensing probe must be attached)
Do not get the controller wet, as it is not waterproof and will be damaged by moisture.
This device is a charge controller, not a complete battery management system. It is designed to power small accessories like LED lights. However, the load output is dependent on the solar input (daylight and darkness) and does not provide a consistent power supply suitable for running appliances like a fridge or freezer. Therefore, we advise against connecting electronics that need stable and reliable power directly to the MPPT Solar Controller. Instead, all accessories should be connected directly to your battery bank using appropriately fused circuits.
x2 Anderson to Bootlace Ferrule Connectors Included
The unit comes with x2 Anderson to Bootlace Ferrule Connectors – the Anderson plug makes setup simple, while the bootlace ferrule ensures a clean, secure fit into the controller’s terminals.
Specifications
| Parameter | Specification | ||||
|---|---|---|---|---|---|
| System Voltage | 12V/24V/36V/48V AUTO in GEL/FLD/AGM AUTO; USER OR LI(MANUAL) | ||||
| Standby Power | 0.3W Max | ||||
| Battery Voltage | 9V TO 60V | ||||
|
|||||
| Max. Solar Input Voltage Range |
|
||||
| Min. Solar Input Voltage Range |
|
||||
| Max. System Input Power |
|
||||
| Rated Charging Current | 40A | ||||
| Conversion Efficiency | 0.98 | ||||
| MPPT Tracking Efficiency | >99% | ||||
| Operating Temperature | -35°C ~ +45°C | -31°F ~ +113°F | ||||
| Ingress Protection | IP43 | ||||
| Weight | 1.9kg | ||||
| Communication Method | RS485 & Integrated Bluetooth | ||||
| Altitude | ≤3000m | ||||
| Product Dimensions | 218 x 150 x 65mm |
User Manual and Support
KickAss has warehouses located on both the East and West Coast of Australia. Express orders are dispatched same business day if ordered before 12pm AEST. Standard orders are dispatched within 2-3 business days. Deliveries are made during business hours, Monday to Friday.
At KickAss, we take full control of our product journey - from concept to creation - by designing, engineering, and manufacturing our own batteries and 12V accessories in our wholly owned facilities located in Australia, China, and the USA. This end-to-end approach allows us to maintain strict quality standards, drive innovation, and deliver unbeatable value. By owning our production facilities, we ensure every product that carries the KickAss name is built tough, tested rigorously, and ready for off-grid adventure.
Change your mind? No worries, our quick & easy online or in-store returns process has you covered. Learn more.
BUNDLE & SAVE!

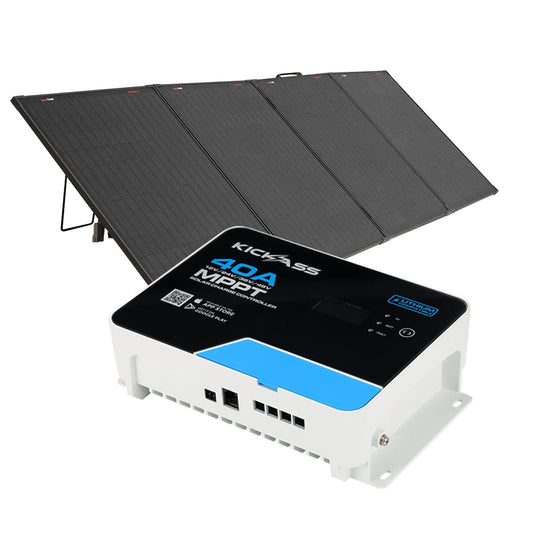

12V 300W Super Thin Folding Solar Panel with PWM Controller, and 40A 12V/24V/36V/48V MPPT Solar Charge Controller
40A 12V/24V/36V/48V MPPT Solar Charge Controller, and Remote LCD Display For MPPT Solar Controllers

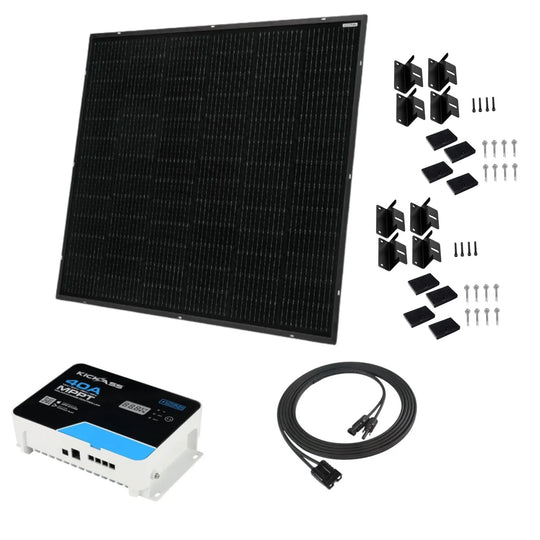

12V 210W Ultra Slim Fixed Glass Solar Panel, 40A 12V/24V/36V/48V MPPT Solar Charge Controller, Solar Panel PV to Anderson Extension Cable - 5m, and 2 x Mounting Brackets Kit for the Ultra Slim Fixe...

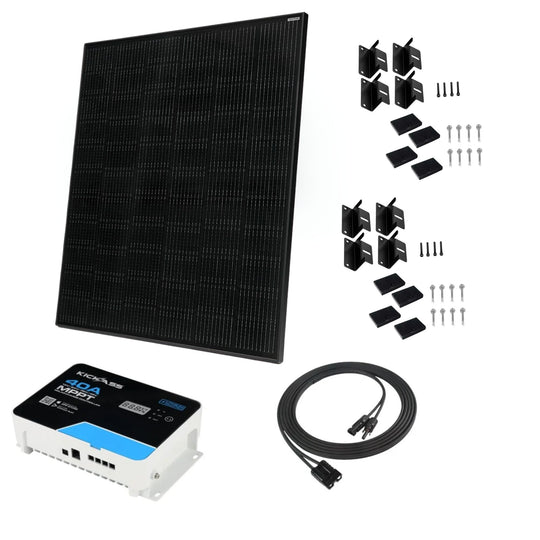

12V 280W Ultra Slim Fixed Glass Solar Panel, 40A 12V/24V/36V/48V MPPT Solar Charge Controller, Solar Panel PV to Anderson Extension Cable - 5m, and Mounting Kit for the Kickass Ultra Slim Fixed Gla...
